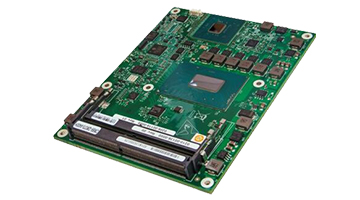

• Highest Performance COM Express Compact module Type 6 , 95mm x 125mm
• Intel® 8th Generation Core™ processor family and XEON processor family which support ECC
• On board SSD supported
• Advanced graphics performance, interfaces supported include DP/HDMI/DVI，VGA(optional) and DP/LVDS
• High security with TPM 2.0 supported
• High reliability with redundant BIOS and autorecovery technology supported
Data Sheet
| Core Syetem | Form factor | Basic COM Express Type 6 Module， PICMG® COM.0 Specification R3.0 |
| Precessor | Intel® 8 th Generation Core™ processor family and XEON processor family | |
| Chipset | Intel® QM370 or CM246 | |
| Memory | 2x DDR4 SODIMM, up to 64G non-ECC/ECC memory | |
| Flash | 16MB system flash for BIOS storage, with 2nd SPI ROM redundancy, up to 128M SPI | |
| EC | H8S2113 | |
| BIOS | AMI EFI Aptio® code base BIOS with Intel® AMT support Support boot from secondary SPI flalsh on module automatically when the 1st SPI flash was damaged. | |
| OS | Window 10 64bit ( installation verification) Red Hat Enterprise Linux 64-bit Ubuntu 16.04 LTS Linux 64-bit | |
| I/O | Ethernet | 1 auto negotiating 10/100/1000Mbps Base-T Ethernet interface |
| USB | 8 x USB 2.0& 4x USB3.0 | |
| SATA | 4 x SATA 6 Gbps | |
| Serial Port | 2x UART | |
| GPIO | 4 GPO & 4 GPI | |
| PCI Express | 1 x16 PEG interface, can be configured based on request 8 x1 PCI Express ports, can be configured based on request | |
| Display | Triple independent display support which can support DP/HDMI/DVI | |
| LVDS/eDP option | ||
| VGA option | ||
| Audio | One High Definition Audio interface | |
| One Speaker Out interface | ||
| Power | ACPI 5.0 compliant with Smart Battery support | |
| ACPI 5.0 supporting states S0, S3, S4, S5, G3, and C0, C1, C3, C6, C7 | ||
| Security | TPM2.0: Infineon SLB 9665 SLB 9665 | |
| API | Power rail voltage level monitoring and reporting via Embedded Controller. The user can get the voltages via API. | |
| Other features | One Low Pin Count (LPC) interface, compatible with LPC 1.1 Specification | |
| One SMBus interface, compatible with SMBus 2.0 Specification | ||
| One I2C interface | ||
| EEPROM on module | ||
| Sleep & LID Button Support | ||
| Temperature Commercial | operating temperature 0°C to 60°C Industrial operating temperature -40°C to 85°C | |
| Humidity | Operating/Storage: 5% to 95% non-condensing | |
| Shock and Vibration | Adhering to IEC60068 standard | |
| Other features | Safety: IEC60950-1 EMC: EN55024, EN55022, and FCC Part 15, Subpart B, Class B | |
