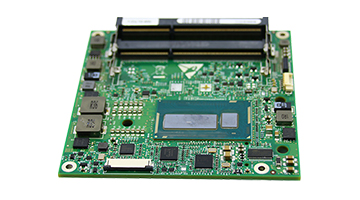

• Based on the Intel 4th-generation ultra-low power Core i7/i5/i3 SoC processor
• Compliant with PICMG COM Express 2.1 Type 6, compact form factor(95×95mm)
• Dual SO-DIMM sockets with support for up to 16GB dual-channel
• DDR3L 1600 MHz memory modules
• Two HD digital display interfaces(DDI),LVDS or eDP(optional) and VGA
• Six PCLe×1 or one PCle×16 link widths,configurable as needed
• One Intel gigabit Ethernet controller
• Four USB 3.0 and eight USB 2.0 interfaces
• Four SATA Gen 3(6.0Gbps)interfaces;support for RAID modes 0,1,5 and 10
• Dual redundant SPI BIOS ROMs;monitoring core voltages in real time
• On-board trusted cryotography module(TPM)
• Support for I-Temp from -40℃ to 85℃
