• Complicant with PICMG3.0,3.1(Options 1 and 9)

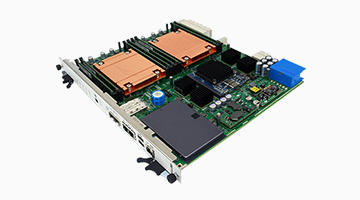

• Dimensions:8U×6HP，280mm ATCA blade
• Support for dual 40Gb/10Gb/1Gb Ethernet Fabric interfaces and dual 1Gb Ethernet Base interface
• Support for eight DDR4 VLP RDIMM sockets;up to 512GB 2133MHz memory module
• Front panel supports two 10G SFP+interfaces,two 1G RJ45 interfaces, two USB3.0 interfaces,and one COM port(adapted via RJ45）
• Support for multiple storage devices
• Carrier board supports one 2.5"SATA SSD or SATA HDD
• Support for optional RTM modules, additional HD drive,RAID(0/1),and two SAS interfaces
• Support for MXM GPU cards
• Support for TCM/TPM
• Support for EFI firmware and customer-defined EFI applications
• Support for Intel DPDK
• Supported operating systems
• Windows Server 2008
• Red Hat Enterprise Linux,64-bit
