• Complicant with PICMG 3.0, 3.1(Options 1 and 9)

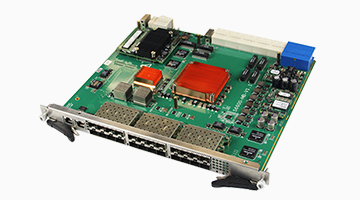

• Dimensions: 8U×6HP，280mm ATCA blade
• Rear panel support  640Gbps exchange capacity, It is connected with 12 node slots respectively and another switch board
• Rear panel support  channel independent configuration is 40G KR，4x10G KR， 10G XAUIFront panel support 12x 10G SPF+，1x GbE RJ45
• Support various hardware-based packet process，including MPLS, VPLS, GRE, ISATAP, PBB, PBB-TE, SPBm and MAC in MAC congestion management function，including Priority Flow Control, Destination Module Flow Control, QCN and Dynamic HiGig Load balancing
• Support hardware-based storage virtualization(Hardware-based storage virtualization)
• Based on 10G to 40G port and Using HiGig, HiGig2 agreement
• Support Port trunking and remote mirroring
• Support dynamic management based on on-chip packet cache
• Minimize the impact of the packet burst • Support IPv4 and IPv6
• Support scheduling algorithm including Strict Priority, Round Robin, Weighted Round Robin(WRR), Weighted Elastic Round Robin (WERR)
• Support congestion control algorithm， HOL prevention，Ingress back pressure(flow control)Based on content process（Three-stage ContentAware Processing）
• Complete QoS support ,including Service Aware Flow Control (SAFC), Weighted RED和srTCM and trTCM color marking and metering
• Support more and more tagged widely (Extensive double tagging support)
• Support maximum 12K frames
• Support for broadcast packages, multicast packages and unknown multicast packages broadcast storm control
